scouter



사용법

이 블로그를 참조하자.

https://dewble.tistory.com/entry/how-to-use-scouter-xlog

[Scouter]Scouter XLog 활용 방법 + XLog 패턴



scouter server 구성하기

server config를 configMap으로 빼자.

apiVersion: v1
kind: ConfigMap
metadata:
  name: scouter-server-config
  namespace: default
data:
  scouter.conf: |-
    server_id=TEST-PRD

    #Activating Http Server
    net_http_server_enabled=true
    net_http_api_swagger_enabled=true

    #Activating Scouter API
    net_http_api_enabled=true

    #Retaining date for automatic deletion. delete profile data first.
    mgr_purge_profile_keep_days=2

    #Retaining date for automatic deletion
    mgr_purge_xlog_keep_days=5

    #Retaining date for automatic deletion
    mgr_purge_counter_keep_days=15



scouter server deployment, service를 만들고, 6100포트는 nodeport로 별도 노출시킨다.

kind: Deployment
apiVersion: apps/v1
metadata:
  name: scouter
  namespace: default
  labels:
    app: scouter
    app.kubernetes.io/part-of: apm
spec:
  replicas: 1
  selector:
    matchLabels:
      app: scouter
  template:
    metadata:
      labels:
        app: scouter
    spec:
      containers:
        - name: scouter
          image: 'docker.io/scouterapm/scouter-server:2.17.1'
          ports:
            - name: tcp1
              containerPort: 6180
              protocol: TCP
            - name: tcp2
              containerPort: 6100
              protocol: TCP
            - name: udp
              containerPort: 6100
              protocol: UDP
          env:
            - name: JAVA_OPTS
              value: '-Xms1024m -Xmx1024m -Duser.timezone=Asia/Seoul'
          volumeMounts:
            - name: scouter-conf
              mountPath: /home/scouter-server/conf/scouter.conf
              subPath: scouter.conf
              readOnly: true
      volumes:
        - name: scouter-conf
          configMap:
            name: scouter-server-config
---
kind: Service
apiVersion: v1
metadata:
  name: scouter-nodeport
  namespace: default
  labels:
    app: scouter
    app.kubernetes.io/part-of: apm
spec:
  ports:
    - name: tcp
      protocol: TCP
      port: 6100
      targetPort: 6100
      nodePort: 30014
  type: NodePort
  selector:
    app: scouter
---
kind: Service
apiVersion: v1
metadata:
  name: scouter
  namespace: default
  labels:
    app: scouter
    app.kubernetes.io/part-of: apm
spec:
  ports:
    - name: tcp1
      protocol: TCP
      port: 6180
      targetPort: 6180
    - name: tcp2
      protocol: TCP
      port: 6100
      targetPort: 6100
    - name: udp
      protocol: UDP
      port: 6100
      targetPort: 6100
  type: ClusterIP
  selector:
    app: scouter



agent 배포

https://github.com/scouter-project/scouter

GitHub - scouter-project/scouter: Scouter is an open source APM (Application Performance Management) tool.

공식 깃 참조하여 agent 받는다.



각 파드별 모니터링을 위해 application image 빌드시 scouter agent를 복사하고,

deployment에서 command로 javaagent 설정을 해주는 방법이 적합하다.

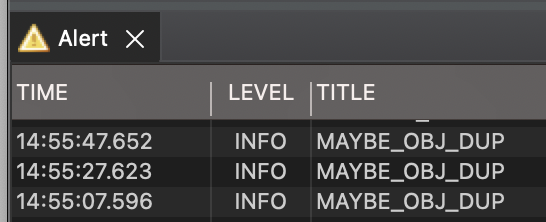

빌드타임에 obj_name을 결정하면 replica가 증가시점에 obj_name dup이 발생하여 다음 캡처와 같은 에러를 보여주며, 최초 하나의 pod만 정상적으로 조회되기 때문이다.

-javaagent:/scouter/agent.java/scouter-agent-java-2.20.0.jar
-Dscouter.config=/scouter/agent.java/conf/scouter.conf
-Dobj_name=$(SCOUTER_POD_NAME)
-Dcom.sun.jndi.ldap.object.disableEndpointIdentification=true



Client

https://github.com/scouter-project/scouter/releases

Releases · scouter-project/scouter

운영체제에 적합한 client를 받아 압축해제 후 실행파일을 실행한다.

노출시킨 포트로 admin // admin으로 로그인한다.

로그인이 성공하면 이런 화면을 볼 수 있다.
